2023-2021 FORD F-150 SUPERCHARGERS (5.0 4V)
BOLT ON 70-80%+ MORE HORSEPOWER TO YOUR F-150
Turn your amazing stock 2021+ F-150 into an absolute horsepower monster when you add our ProCharger supercharger systems and kits. Call our sales staff today to learn more about the product features, including:
• Highly durable (customers typically report 200,000+ miles)
• Fuel mileage friendly
• Increased torque for towing
• Quick and easy installation
• Complete turnkey systems
• Factory drivability
• Kit & finish options tailored to you
• Robust CNC billet bracket system

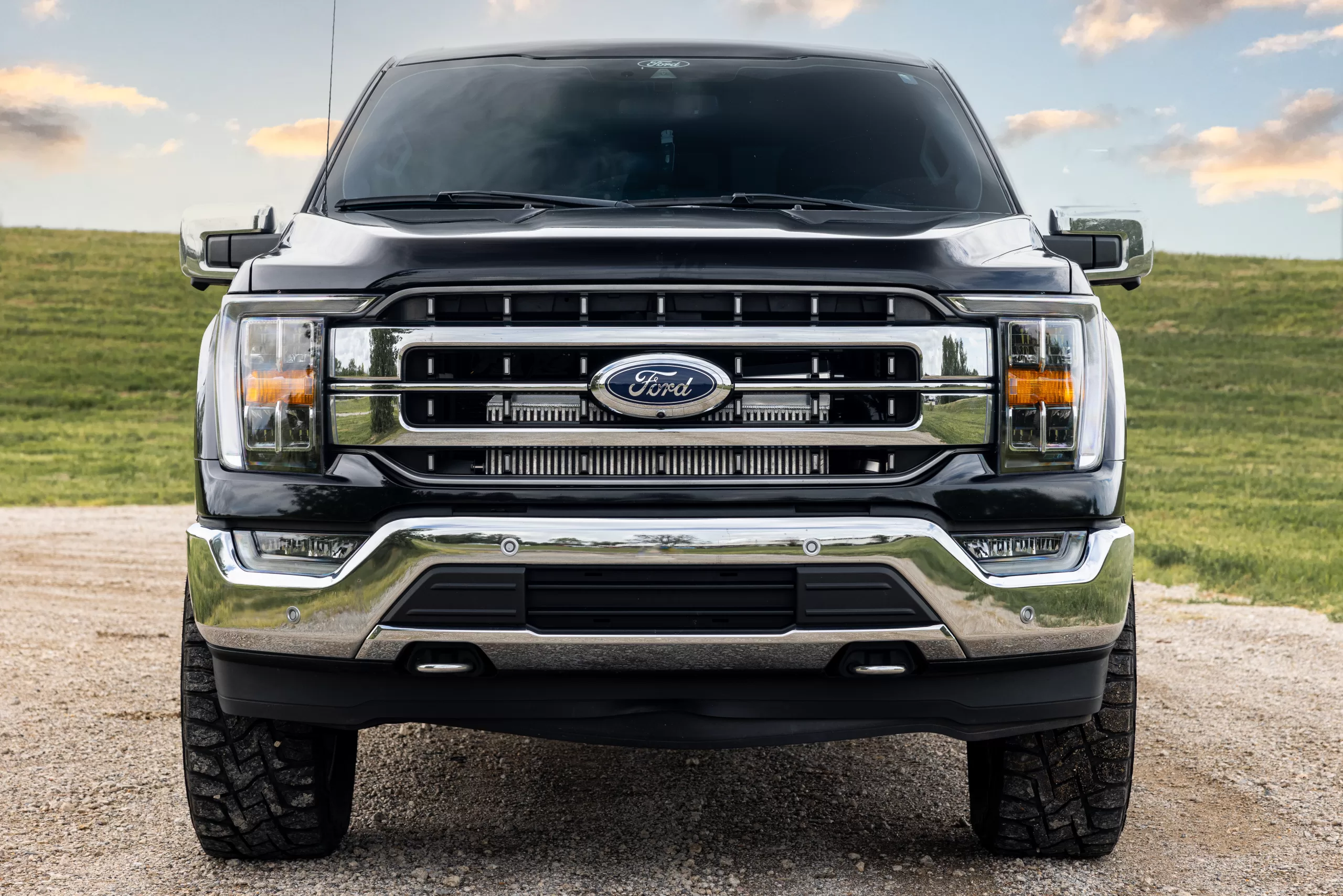

• Front mounted air-to-air intercooling provides consistent cool, reliable power
• Optimized supercharger location (not top mounted) minimizes heat transfer
WHY CHOOSE PROCHARGER
• 30 Years of Innovation
• Largest Power Gains
• Coolest Charge Air Temps
• Street Legal Systems
• Most Wins and Championships
• OEM Quality and Appearance
• Best Service & Product Support
• Most Kits Ship Within 2-3 Days
• Proudly made in the USA
CHOOSE THE SYSTEM BEST FOR YOU
HIGH OUTPUT SYSTEM
• 10 psi boost with P-1X or P-1SC-1
• Gain 70-75% more HP
• Uses factory 6-rib shared drive
• Uses factory airbox
• 3-core air-to-air intercooler
• ProFlow blow-off valve
• Part #: 1EA411-SCI
OPTIONS
• Black or polished supercharger / bracket
• Black finish for intercooler
• Helical gear set for noise reduction
• Race blow-off valve
• Air-to-air race intercooler upgrade
• Head units P1X through F1A94
• Intake manifold upgrade (+50 HP)
STAGE II SYSTEM
Same as HO system except
• 12 psi boost with P-1X or P-1SC-1
• Gain 75-80%+ more HP
• Air-to-air race intercooler
• 8-rib dedicated drive standard
• Part #: 1EA511-SCI
OPTIONS
Same as HO system except
• 10-rib dedicated drive
• Polished or Black finish for the Crank Support
• Crank Support for ultra high HP
WANT MORE BOOST, GOT MORE MODS? TUNER KIT!
If you have, or plan to add, other vehicle modifications, such as, headers, race fuel, E85, methanol injection, or changing internal engine components (like cams, heads), then a Tuner Kit is the best option for you. These kits are identical in hardware to full systems, except they do not include ECU/PCM calibration or fuel components. Perfect for someone wanting to perform custom tuning to match all of the vehicles modifications. Tuner kits are highly customized by the end user and are, therefore, not emissions certified.
STAGE II TUNER KIT EXAMPLE: 1000HP F-150!
Our friends at Oz Tuning posted this great video, showing just how easy making 1000hp can be. They accomplished these massive HP numbers with the stock engine, stock trans, and a ProCharger Stage II kit. They opted to use the P-1X head unit, added good exhaust, their own E85 fuel system, and their custom tuning… and the results were EPIC! We hope you enjoy this video as much as we did.
?version=3&mute=1&loop=1&playlist=" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>
|
SIMPLE DIY INSTALLATION!
These 2023 F-150 supercharger intercooled kits and systems have an ultra-simple installation, thanks to not having to remove the intake manifold, no fuel system upgrades needed, and no cutting, trimming, or modifying of the factory truck. Simply open the box, start bolting the parts on, load the calibration, and GO!
Of course, not everyone wants to turn wrenches in their garage, so if you prefer to let the pros handle the project, ProCharger’s expansive network of installing dealers means you’ll have no problem finding a quality installer in your area.
GET INSPIRED – EXAMPLE CUSTOMER BUILDS
AS SEEN ON: MOTORTREND
Learn why ProCharger is more than just a supercharger; it represents a legacy of power. MotorTrend outlines all the ways ProCharger has consistently set the bar higher for aftermarket supercharging.
BUILD & PRICE
HO System starting at $8,299
Stage ll System starting at $8,699
Pricing on these units vary by configuration. Configure your purchase now.
FIND A DEALER NEAR YOU
Looking to make a purchase or a shop to install? We have a large group of dealers ready to serve you with your ProCharger needs. Click below to find a dealer near you!
TECH SECTION
PULLEY AND BELT SPECS
HO - SSD-Offset Blower Pulley - 6 Rib
6.59” Crank & 2.95” Blower = DB721i-006 Belt
6.59” Crank & 3.40” Blower = DB725i-006 Belt
6.59” Crank & 3.60" Blower = DB725i-006 Belt
6.59” Crank & 3.70" Blower = DB730i-006 Belt
6.59” Crank & 3.80" Blower = DB730i-006 Belt
6.59” Crank & 3.90" Blower = DB733i-006 Belt
6.59” Crank & 4.00" Blower = DB733i-006 Belt
6.59” Crank & 4.15" Blower = DB735i-006 Belt
STAGE 2 - D-Offset Blower Pulley - 8 Rib
8.00” Crank & 3.40” Blower = DB690i-008 Belt
8.00” Crank & 3.55” Blower = DB690i-008 Belt
8.00” Crank & 3.70" Blower = DB690i-008 Belt
8.00” Crank & 3.85" Blower = DB690i-008 Belt
8.00” Crank & 3.90" Blower = DB690i-008 Belt
8.00” Crank & 4.00" Blower = DB690i-008 Belt
8.00” Crank & 4.13" Blower = DB694i-008 Belt
8.00” Crank & 4.25" Blower = DB694i-008 Belt
8.00” Crank & 4.38" Blower = DB694i-008 Belt**
8.00” Crank & 4.50" Blower = DB700i-008 Belt
8.00” Crank & 4.63" Blower = DB700i-008 Belt
8.00” Crank & 4.75" Blower = DB710i-008 Belt
8.00” Crank & 4.88" Blower = DB710i-008 Belt
8.00” Crank & 5.00" Blower = DB720i-008 Belt
** = STG2 10PSI W/ P1SC or P1X
BELT SIZE / PART # EXAMPLE:
DB690-008 = 69" 8 Rib / GATES K080690
PULLEY OFFSET / PART # EXAMPLES:
3.40" D-Offset = DP340i-08D
3.40" SSD-Offset = DP340i-6SSD
Pulley/Belts purchased via phone at this time.
913-338-2886 or [email protected]
INSTALLATION MANUALS
*Coming Soon
SPEAK TO AN EXPERT
Click to call our sales staff or email us if you need any help. We will be happy to assist you with any questions you may have.
Mon – Fri 8am – 5:30pm CST
Phone – (913) 338-2886
Sales Email – [email protected]
Get a Catalog
Our catalogs feature much of this detail. You can either download a copy or have one mailed to you free of charge.
CALIFORNIA EMISSIONS COMPLIANCE INFO (CARB)
California approved products for street legal use (complete systems) will have an associated CARB EO# for compliance. For a full list of California and 50 state street legal systems, click below.
MORE ABOUT PROCHARGING FORD VEHICLES
EMISSIONS COMPLIANCE
ProCharger offers Executive Orders for Emissions Compliance (EO) from California Air Resources Board (CARB) for many of our most popular car, truck and SUV applications. If you live in California, we can only sell you products with EO certification. Check out our full list of EO offerings.
