LS Serpentine Accessory Drive Kit

PROCHARGER-COMPATIBLE SERPENTINE ACCESSORY DRIVE KITS

Fits BBC / SBC / LS Engines

The ProCharger Accessory Drive offers the compact, sleek design style you expect from ProCharger, combined with a unique supercharger bracket design that offers you the convenience of adding the supercharger kit NOW or LATER. This kit includes everything you’ll need to fit the accessories you want with the advantages you can expect from ProCharger.

ORDER JUST WHAT YOU NEED

The ProCharger Accessory Drive is flexible and expandable, which allows you to select the combination of accessories you want to use.

The base kit includes:

– Water Pump (LS only)
– Water Pump Pulley
– Crank Pulley
– Alternator Bracket & Pulley
– Serpentine Belt & Tensioner

Or you can upgrade to include the following:

– Power Steering Bracket & Pulley
– A/C Bracket and Pulley Cover
– Supercharger Head Unit P-1SC thru F-2
– Intercooler / Bypass Valve / Tubing
– Supercharger Bracket, Tensioner, & Belt
– Finish Options: Satin (standard), Black, Polished

LS Serpentine Accessory Drive Kit Animation

INSTALL NOW, PROCHARGE LATER

Of course, we would love for you to buy them at the same time, but we understand. Project vehicle budgets often mean you need to do these installs at different times. With this accessory drive, you are able to save time and money by simply adding the supercharger and hardware when you are ready. It’s an easy bolt on upgrade.

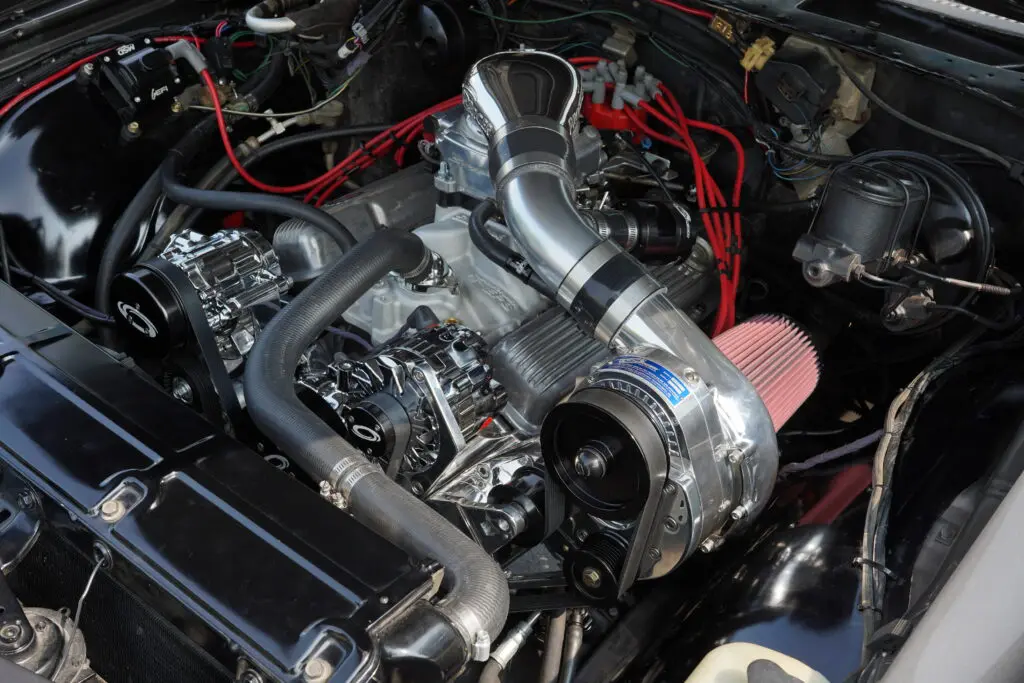

Underhood of LS Acc Drive Kit

COMPACT DESIGN

Our engineers created a sleek design that functions as good as it looks. The design features a 6-rib accessory belt drive that sits forward to allow an 8- or 10-rib supercharger drive belt to be placed behind it (now or later). Heavy-duty, spring-loaded tensioners are used on both belt kits for virtually maintenance-free operation, even after years of high load, high rpm use. To assist in different engine configurations, the supercharger outlet can face either direction.

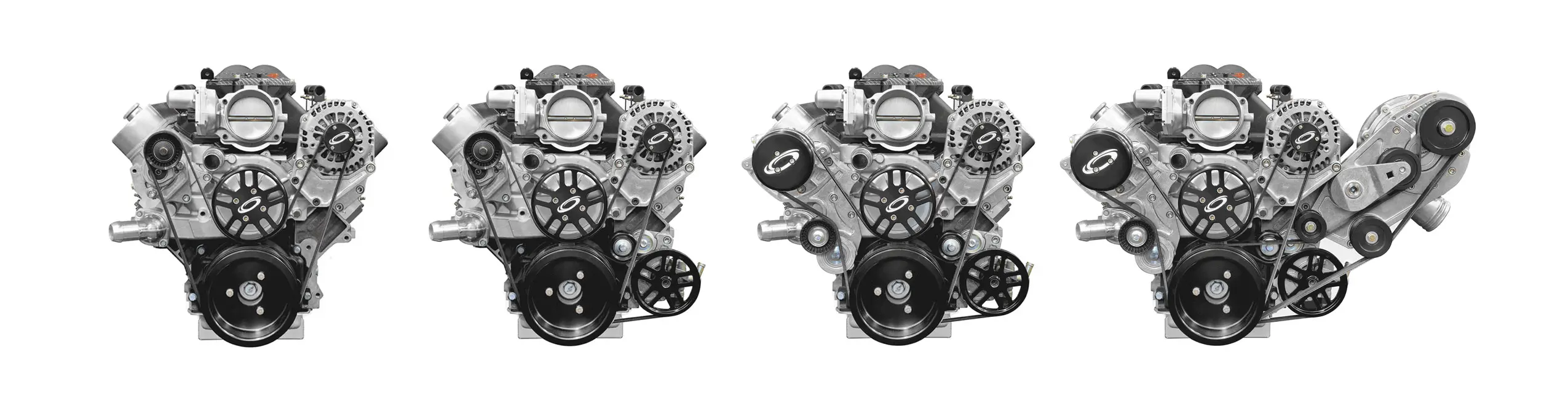

Dimensions

Getting the configuration you need often begins with planning your underhood layout. Choose from one of many, versatile layouts to ensure it works for your setup:

ACCESSORIES NEEDED

  • Sanden SD-7B10 A/C compressor 6-rib drive
  • 2007-2013 GM Truck Alternator, GM p/n 20881337 (or equivalent)
  • GM Type 2 Power Steering pump Tuff Stuff 6175AL (or equivalent) reservoir p/n 6175ARES, remote reservoir required for supercharged applications
  • Water pump (customer supplies on SBC/BBC, ProCharger supplies on LS)

ADDITIONAL NOTES

  • Pinning crank pulley is recommended
  • Accessory Pulleys included
  • Can be ordered without A/C
  • Can be ordered without power steering
  • Not available for LS7
  • Not tall deck compatible
  • Not compatible with VVT

AS SEEN ON: DEMOLITION RANCH

Our friend, Matt, known for @DemolitionRanch and @OffTheRanch invited us down to ProCharge his latest project – a 1964 Chevy (LS swapped) Impala burnout monster. Many of you have probably been following this build over the past few months, watching Matt and his team create this beast. We are huge fans of all things Dr. Demolition, so when we were asked to be a part of this build, we “bounced” on it! We figured this thing needed more color, so we brought down a freshly coated GOLD D-1SC supercharger to surprise Matt and his team. We also sent our team cross-country, 1600 miles roundtrip, with our newly announced LS Accessory Drive Kit.
