ProCharger LS Swap
ProCharger LS Swap

LS Engine Supercharger Kits

PROCHARGER OFFERS SEVERAL OPTIONS TO MAKE SUPERCHARGING YOUR LS ENGINE EASY!

We know LS swaps are as common as bolting on a set of headers these days, and the “one size fits all” approach wouldn’t work for supercharging. Whether you are installing an LS engine into a FoxBody Mustang, Square body truck, Chevelles, 3/4 Ton Trucks or even a mail carrier truck… ProCharger has a supercharging solution!

To find the best supercharger for your application, consider:

Where do you want to mount the supercharger?

DRIVER’S SIDE MOUNT

Most crate motors and LS engines that will NOT be using Corvette accessories will likely want a driver’s side mount. There are 3 options available, all of which have the option to use up to a F-1X/F-2 blower to achieve higher horsepowers.

  • LS Serpentine Accessory Drive Kit – our most popular choice, ideal for both street and race use
  • LS Cog Drive Race Kit – for race-only applications
  • LS Classic Serpentine Kit – for unique applications where the LS Accessory Drive Kit will not work
  • LS Truck Accessories Kit – for use on applications using truck accessories

LS SERPENTINE ACCESSORY DRIVE KIT

The ProCharger Serpentine Accessory Drive offers the compact, sleek design style you expect from ProCharger, combined with a unique supercharger bracket design that offers you the convenience of adding the supercharger kit NOW or LATER. This kit includes everything you’ll need to fit the accessories you want with the advantages you can expect from ProCharger.

With different driver-side mounting options, it will surely fit your application.

  • Standard Mount – Lower profile, tucked in closer to the engine, ideal for typical installations.
  • High Mount – For when aftermarket suspension components or frame clearance issues require more distance.
  • F-1X/F-2 Mount – Ideal for people choosing to use a F-1X or F-2 supercharger.
LS Serpentine Accessory Drive Kit Animation

LS COG DRIVE RACE KIT

The cog drive system offers racers the durability and reliability they need for the unique duty cycle of dedicated drag racing. It can be used in both carbureted and EFI applications and features a cog/gilmler belt. It is compatible with accessories, such as A/C and P/S.

Requires specific accessories and balancer. Contact us for details.

LS CLASSIC SERPENTINE KIT

The ProCharger LS Serpentine Drive Kit can be ordered with virtually any combination of streetcar accessories, or without any at all for racing applications. This flexibility, combined with the bracket location, is a good option for driver’s side mount when the Accessory Drive Kit and/or cog kit will not suit your application.

With three drive options, it will surely fit your application. Choose from 6-, 8-, or 10-rib.

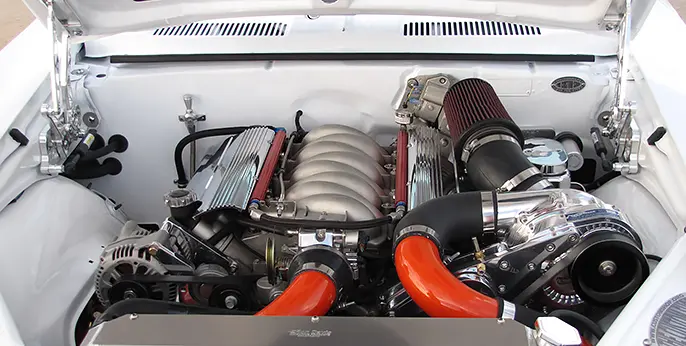

LS Serpentine Drive Kit, Driver's Side Mount LS Serpentine Drive Kit, Driver's Side Mount

Example: First Generation Camaro built by The Custom Shop

LS SERPENTINE DRIVE KIT – TRUCK ACCESSORIES

If you are aiming to use a 1999-2013 truck LS engine (4.8/5.3/6.0/6.2) with truck accessories and driver’s side mount in an automotive chassis, the ProCharger LS “Truck-Style” Serpentine Drive Kit is exactly what your LS swap vehicle needs. For truck LS motors going into another truck chassis, running truck LS accessories, your best option is likely one of our truck kits.

LS Serpentine Kit with Truck Bracket





PASSENGER’S SIDE MOUNT

If you are planning to stay with Corvette accessories, or you have a build plan that requires the supercharger to mount on the passenger side, the best kit option for you is the LS Reverse Rotation Kit.

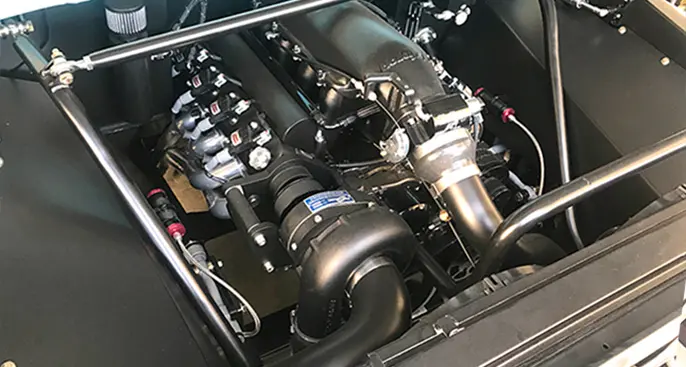

LS REVERSE ROTATION KIT

Cars with low hood lines love the low intake manifold and low mounted accessories from a Corvette LS engine. This positioning makes it perfect for a reverse mounted (forward-facing) ProCharger system to be used. We have seen this system being used in everything from the punishing ranks of professional drifting to SEMA builds.

We even have (4) different drive systems for this kit, which covers a wide range of horsepower, from 650hp to a mind-bending 1,200hp! Those drive system options are as follows.

Versions avaliable:
– 6 rib (shared drive)*
– 6 rib (dedicated drive)*
– 8 rib (dedicated drive)
– 10 rib (dedicated drive)

* = can be used with factory balancer

What accessories do you plan to run?

The accessories you want to run affects the supercharger placement and selection. Do you know what accessories came with your LS engine, and do you plan to keep those accessories?

TRUCK ACCESSORIES

For truck LS motors going into another truck chassis, running truck LS accessories, your best option is likely one of our truck kits. Our most popular option is a a Stage II truck kit from the truck model from which the engine was removed.



CORVETTE ACCESSORIES

If you plan to stay with Corvette accessories, then a passenger side mount is required. And all passenger-side mounts use the LS Reverse Rotation Kit.



UNIVERSAL ACCESSORIES

If you plan to any other set of accessories, then a driver’s side mount LS Serpentine Accessory Drive is our most common fitment.

How Much Horsepower Do You Want to Achieve?

All our standard accessory drives can achieve well over 1000 horsepower, but for the highest horsepower and race applications you will want to use the ProCharger CrankDrive.

CRANKDRIVE FOR PROCHARGED LS ENGINES – ULTRA HIGH HP!

Just like the baddest supercharged Pro Mods on the planet run ProCharger CrankDrives…now the LS swap racers can as well!  Designed to take the abuse of the 3,500+ HP, yet still have the ability to run alternator, fuel pump, and oil pump if needed.

Compatible with race superchargers from F-1 to F-3X you will have plenty of room to grow with your supercharged LSX.  Speaking of growing, the CrankDrive allows for ultra-fast changes in boost level, thanks to quick change gear sets.  For more information on the ProCharger LSX CrankDrive click HERE.

ProCharger CrankDrive
