CRANKDRIVE

SUPPORTS ALL F-3 AND F-4 SERIES PROCHARGERS

 The award winning CrankDrive™ gear drive is capable of supporting 3,500+ horsepower, allows for a variety of accessories, has easy to change gear ratios, and provides maximum efficiency at extreme power levels. Compatible with the all ProCharger superchargers models (F-1 to F-4), the CrankDrive is available for most drag racing engine applications.

Swipe to View Chart

DESCRIPTION PART NUMBER
Chevrolet Big Block F-1/F-2 CrankDrive 4CD-BBC-1
Chevrolet Small Block F-1/F-2 CrankDrive 4CD-SBC-1
Chevrolet LSx F-1/F-2 CrankDrive 4CD-LSX-1
Ford Coyote F-1/F-2 CrankDrive 4CD-COY-1
Ford Small Block F-1/F-2 CrankDrive 4CD-SBF-1
Chevrolet Big Block F-3 CrankDrive 4CD-BBC-3
Ford Coyote F-3 CrankDrive 4CD-COY-3
Ford Small Block F-3 CrankDrive 4CD-SBF-3
Chevrolet Small Block F-3 CrankDrive 4CD-SBC-3
Chevrolet LSx F-3 CrankDrive 4CD-LSX-3
Ford Coyote F-3 CrankDrive 4CD-COY-3
Ford Small Block F-3 CrankDrive 4CD-SBF-3
MBR F-3/F-4 CrankDrive (Requires MBR BBC Timing Cover, not included) 4CD-MBR-3
BAE Hemi F-3/F-4 CrankDrive 4CD-BAE-3
BAE Hemi F-3/F-4 CrankDrive 4CD-BAE-3
AJ TFX Hemi F-3/F-4 CrankDrive 4CD-TFX-3
Visner / Sonny's Small Block F-3/F-4 CrankDrive 4CD-SVS-3
NOONAN F-3/F-4 CrankDrive 4CD-NON-3
481X F3 CrankDrive 4CD-481-3
7.3 Godzilla CrankDrive 4CD-GOD
Big Block Ford CrankDrive 4CD-BBF

KEY FEATURES

  •   The ProCharger CrankDriveTM positions the supercharger higher than other gear drives to allow for better steering component and frame clearance
  •   Lightweight design

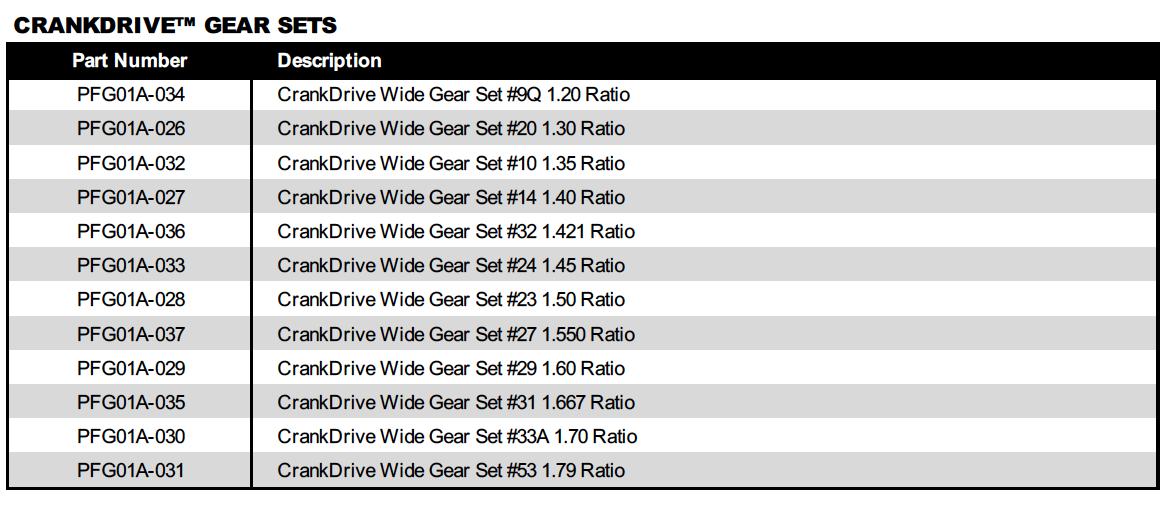

  •   Easy to assemble, disassemble, and swap gear ratios
  •   Complete assembly for specific engines, no sourcing additional components
  •   Optional alternator drive
  •   Optional fuel pump drive
  •   Allows engine to rotate both directions for servicing

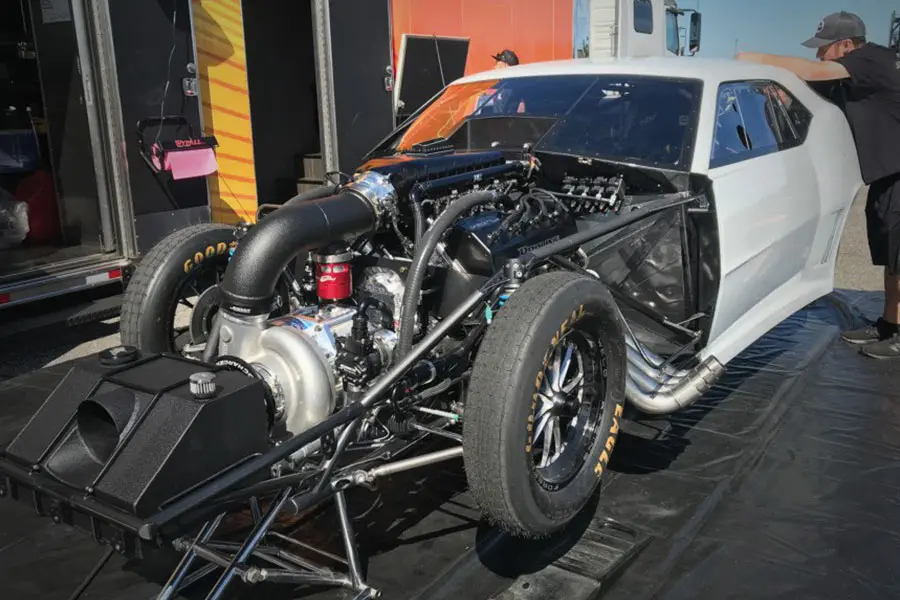

ProLine Pro Mod car equipped with ProCharger CrankDrive and F-3X-140 supercharger

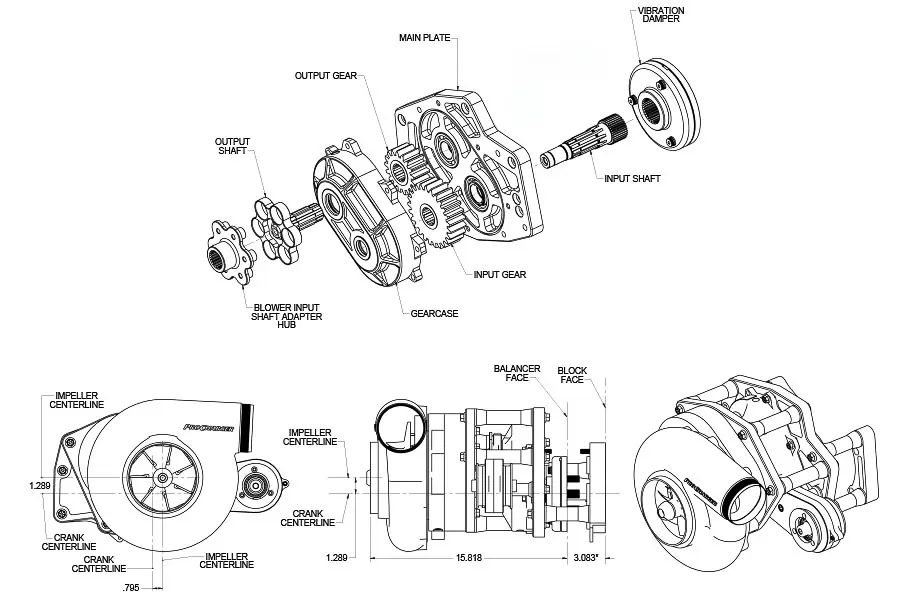

DIMENSIONS AND LAYOUT

RACEDRIVE VS. CRANKDRIVE, WHICH ONE SHOULD I CHOOSE?

RaceDrive (Integrated gear drive and supercharger combo) is ideal for someone space constrained in front of the crankshaft and is running a bracket style class such as Top Dragster or Top Sportsman, where absolute power is not essential to winning. Click here to learn more about RaceDrive.

CrankDrive (External gear drive) is ideal for most applications where space is less of a constraint.  The CrankDrive is completely separate from the ProCharger supercharger head unit, allowing any ProCharger F-series supercharger to be used interchangeably.  The CrankDrive will support any horsepower range and works with a wide variety of race engines.

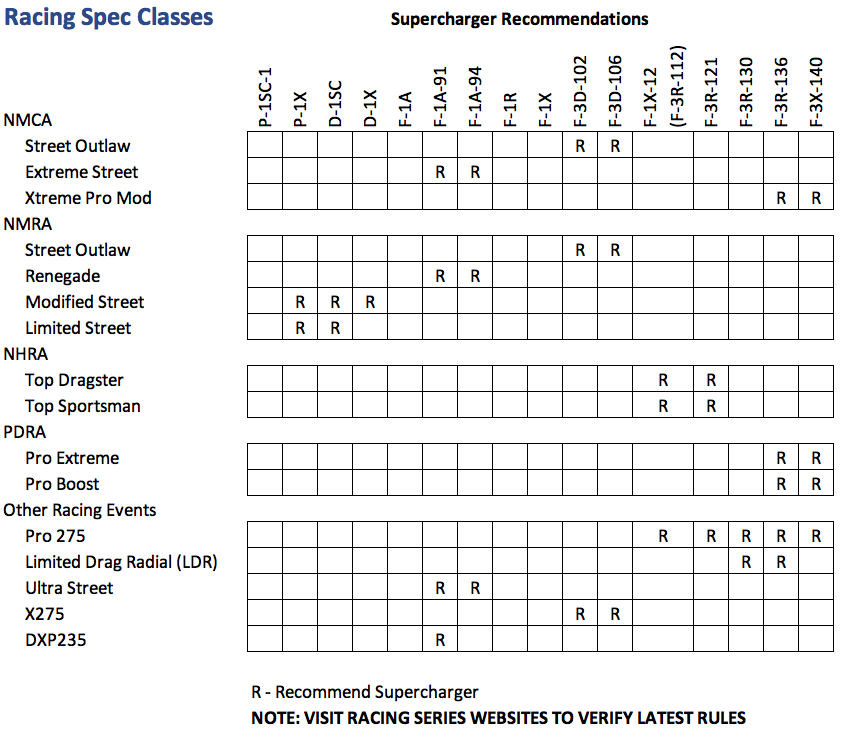

Recommendation: First, start with the class you are competing (see chart below), pick your supercharger, and then choose gear drive or cog belt drive based on that supercharger type.  It’s pretty simple or give us a call to help you figure it out.

RACE WINNING SUPERCHARGER RECOMMENDATIONS

TECH TIP: CRANKDRIVE™ GEAR CHANGE VIDEO

TESTIMONIAL

“I wanted to compliment you guys on the CrankDrive setup. The 481 we just finished was the first time I had worked with one hands on. Everything fit excellent, the kit was very complete, and the instructions made it very easy to install. Thanks for making our job easy!”

– Joe Hessling
