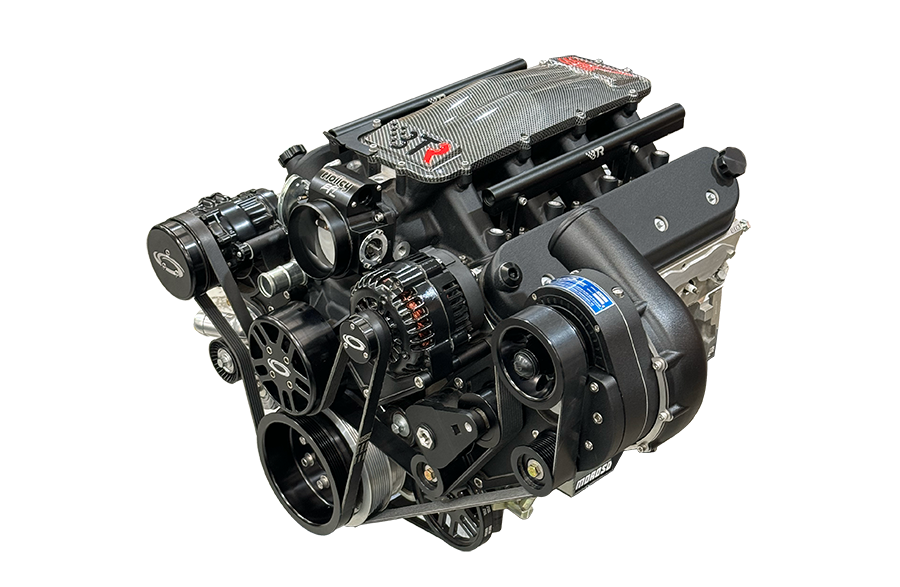

LS Serpentine Accessory Drive Supercharger Kit
INSTALL NOW, SUPERCHARGE LATER
The ProCharger Serpentine Accessory Drive Kit offers the sleek design style you expect from ProCharger, and a unique supercharger bracket design that offers you the convenience of adding the supercharger kit when you are ready. Specifically designed for Chevy LS engines, this kit includes everything you’ll need to fit the accessories you want with the ability to support up to 1,450 hp. The design features our popular 8-rib or 10-rib supercharger drive options that increase grip, reduce stretching and prevent belt slippage. Note: Kits do not include accessories or crank balancer.
ORDER JUST WHAT YOU NEED!
The ProCharger Accessory Drive is flexible and expandable, which allows you to select the combination of accessories you want to use.
The base kit includes:
– Water Pump
– Water Pump Pulley
– Crank Pulley
– Alternator Bracket & Pulley
– Serpentine Belt & Tensioner
– Accessories and Crank Balancer sold separately
Or you can upgrade to include the following:
– Power Steering Bracket & Pulley
– A/C Bracket and Pulley Cover
– Supercharger Head Unit P-1SC thru F-2
– Intercooler / Bypass Valve / Tubing
– Supercharger Bracket, Tensioner, & Belt
– Finish Options: Satin (standard), Black, Polished
Dimensions
Getting the configuration you need often begins with planning your underhood layout. Choose from one of many, versatile layouts to ensure it works for your setup:
- Low Mount – The supercharger bracket has a lower profile and is tucked in closer to the engine. Ideal for typical installations.
- High Mount – For people who may have aftermarket suspension components or frame clearance issues that would otherwise interfere with the standard mount.
- F-1X/F-2 Mount – Similar to the low mount, the bracket positions the supercharger close to the engine. It’s ideal for people choosing to use a F-1X or F-2 supercharger.
- Accessory Drive Only, Choose the Accessories You Need – Do you need A/C? Power steering pump? These dimensions show you the layout for using the accessory drive without the supercharger bracket for a naturally-aspirated installation. Choose the schematic with the accessories you need – water pump, A/C, and/or power steering pump.

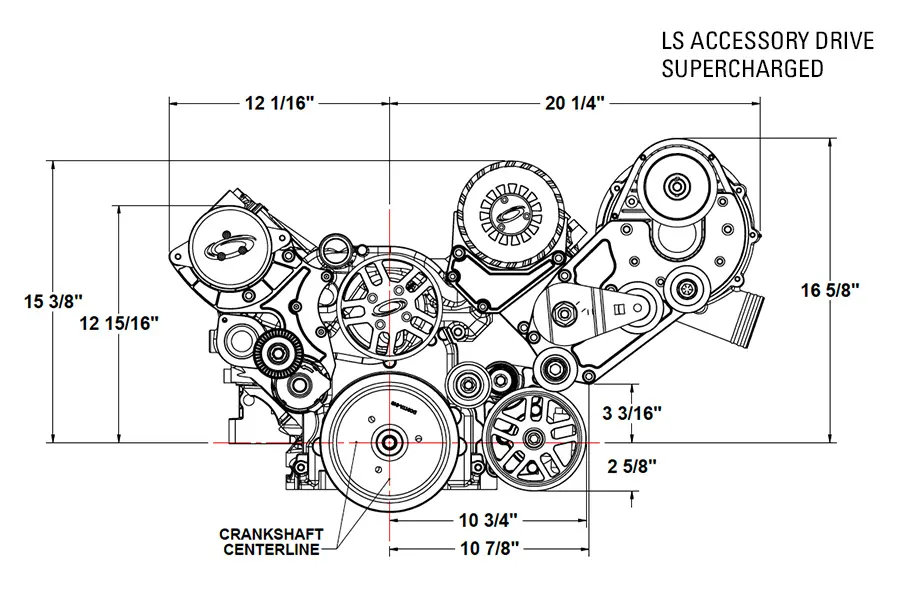

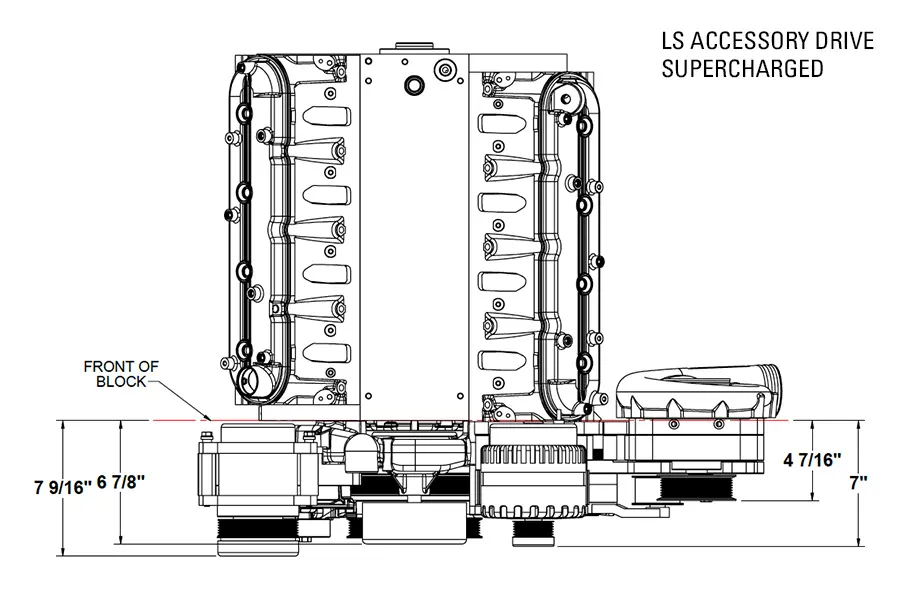

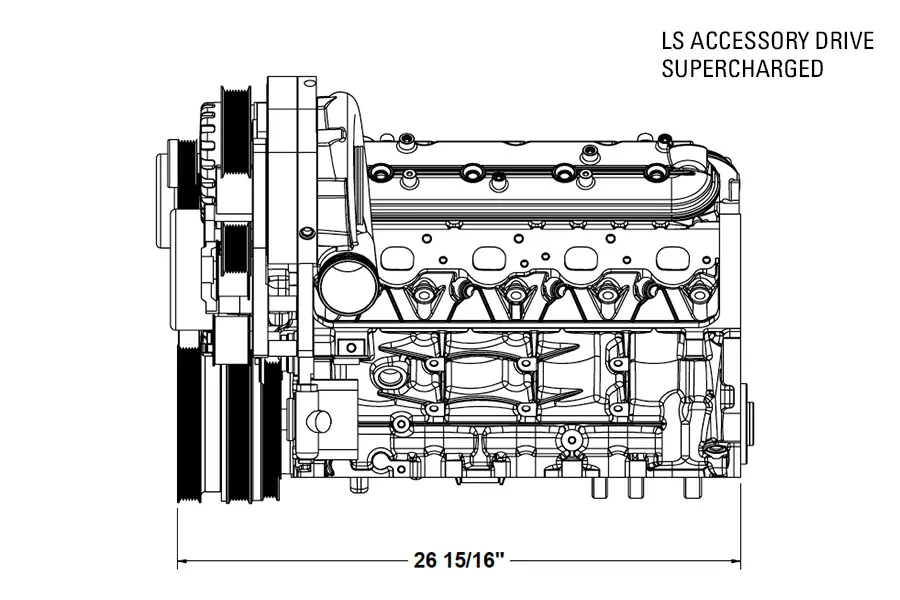

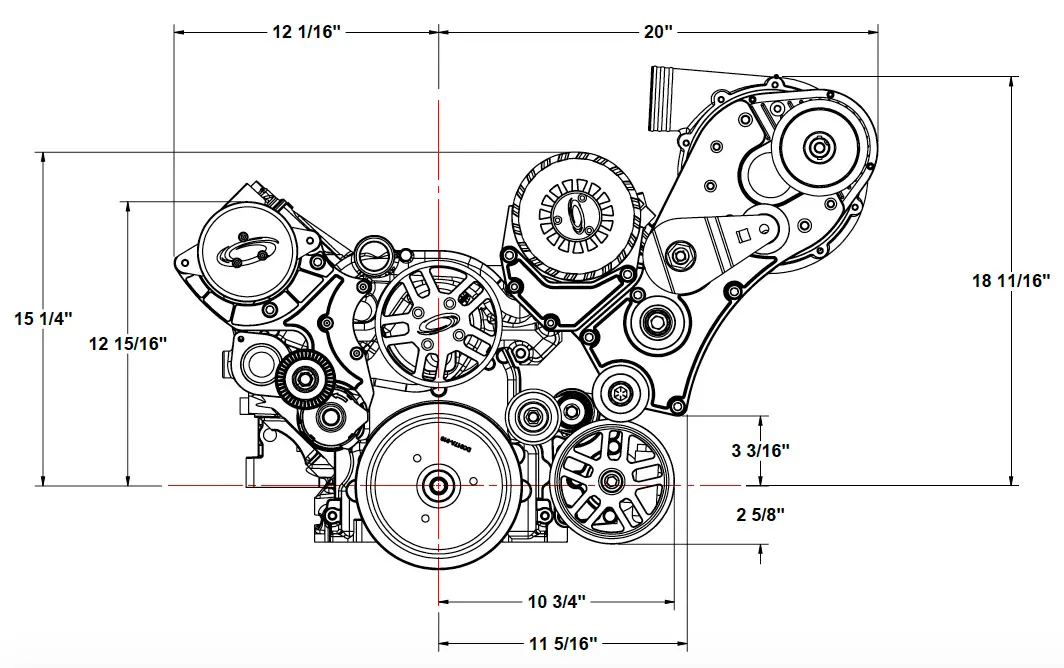

LS ACCESSORY DRIVE, LOW MOUNT SUPERCHARGER BRACKET (CLICK TO ENLARGE)
The supercharger bracket has a lower profile and is tucked in closer to the engine. Ideal for typical installations.

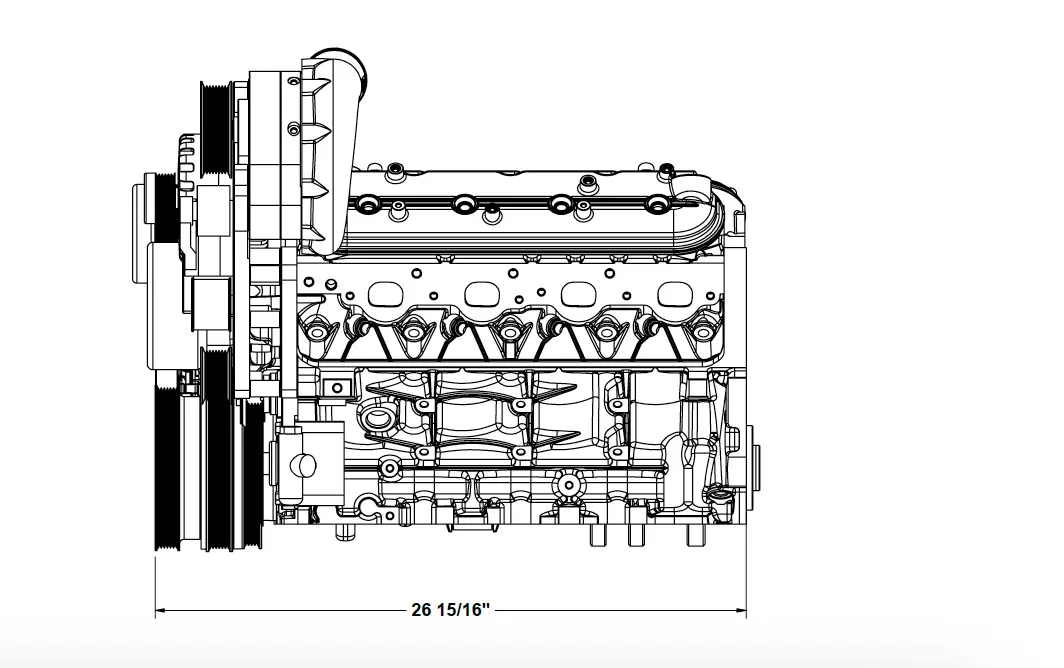

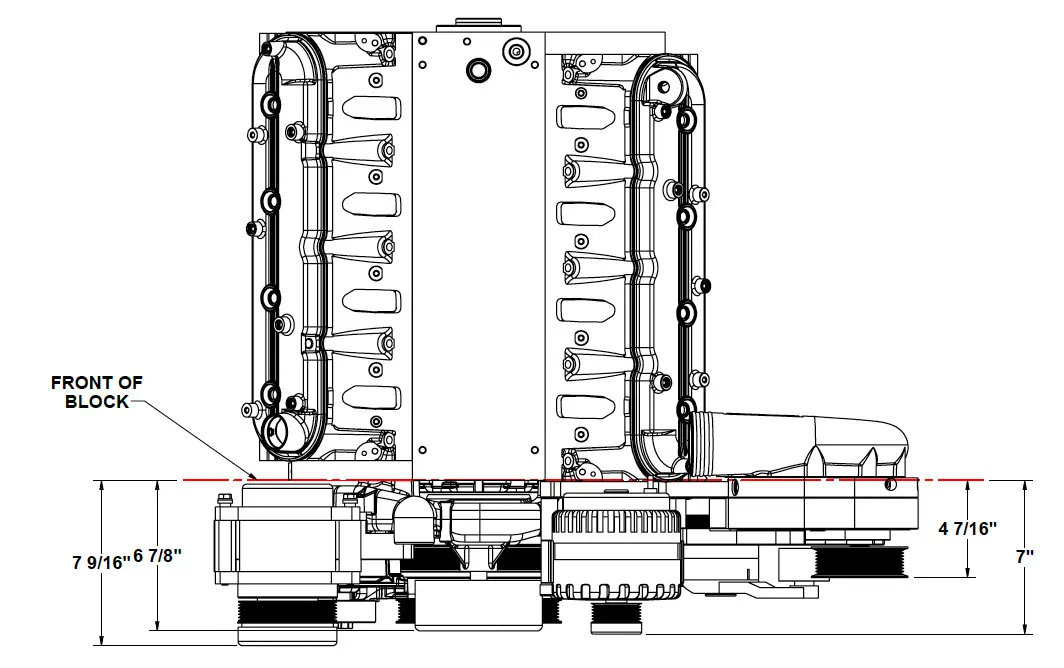

LS ACCESSORY DRIVE, HIGH MOUNT SUPERCHARGER BRACKET (CLICK TO ENLARGE)
For aftermarket suspension components or frame clearance issues that would otherwise interfere with the standard mount.

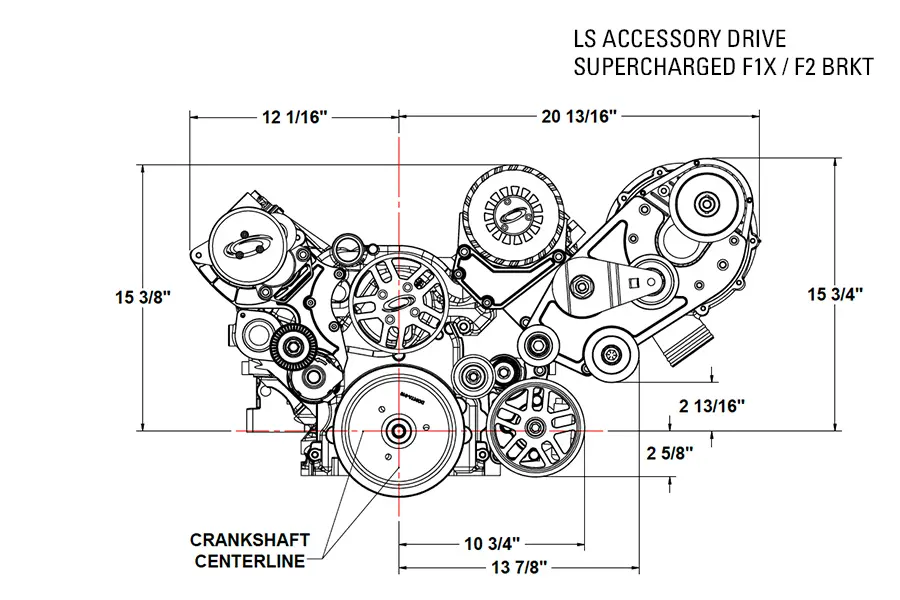

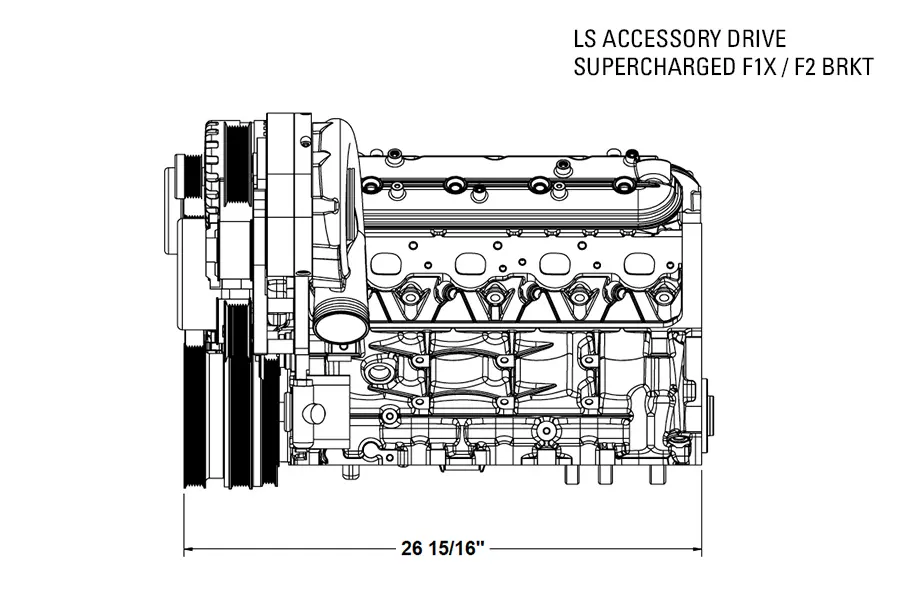

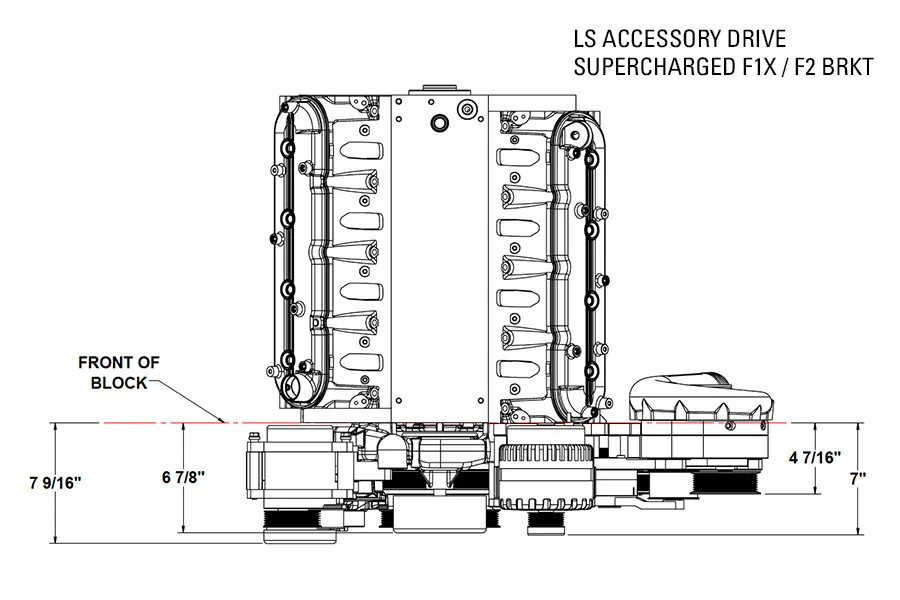

LS ACCESSORY DRIVE WITH F1X / F2 SUPERCHARGER BRACKET (CLICK TO ENLARGE)
Similar to the low mount, the bracket positions the supercharger close to the engine. It’s ideal for people choosing to a F-1X or F-2 supercharger.

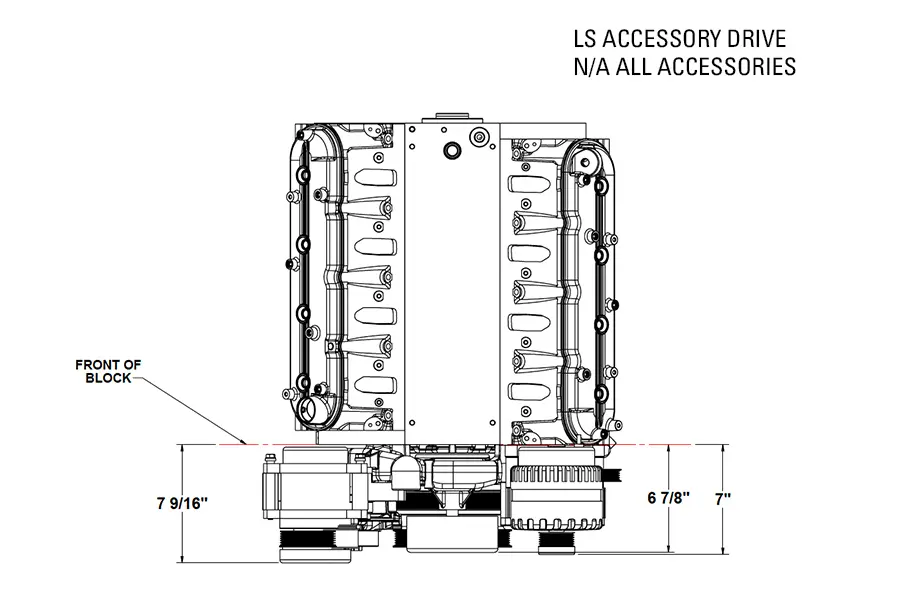

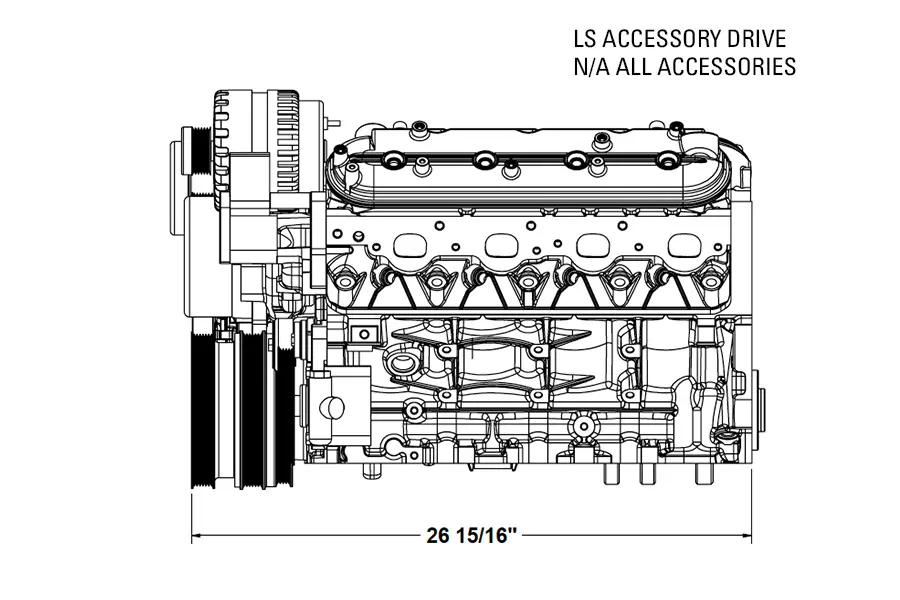

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), ALL ACCESSORIES (CLICK TO ENLARGE)
These dimensions show the layout for using the accessory drive without the supercharger bracket for a naturally-aspirated installation.

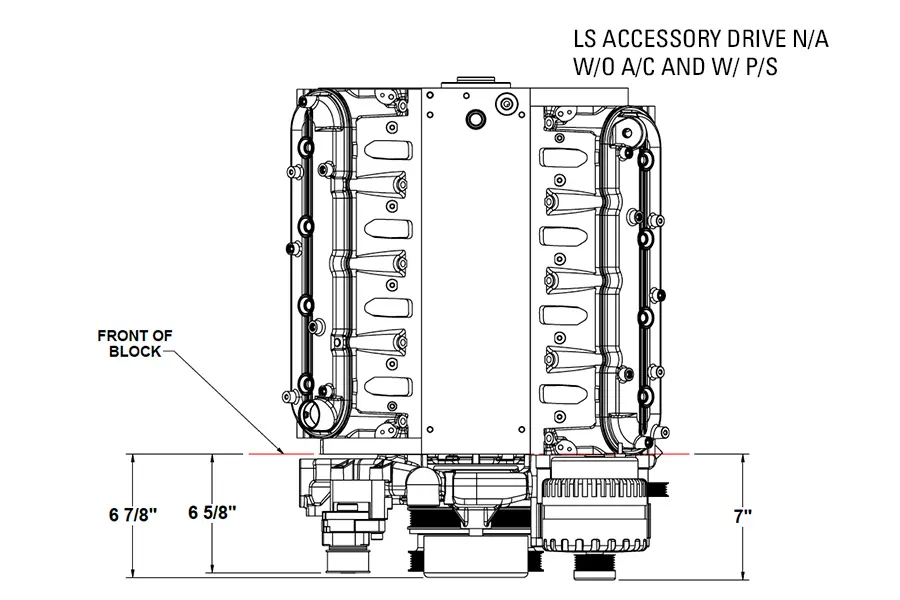

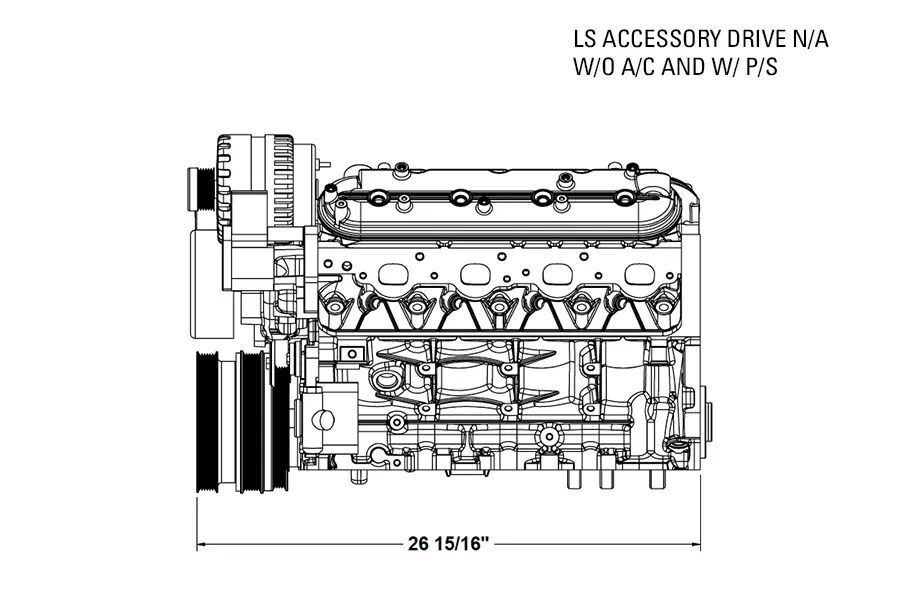

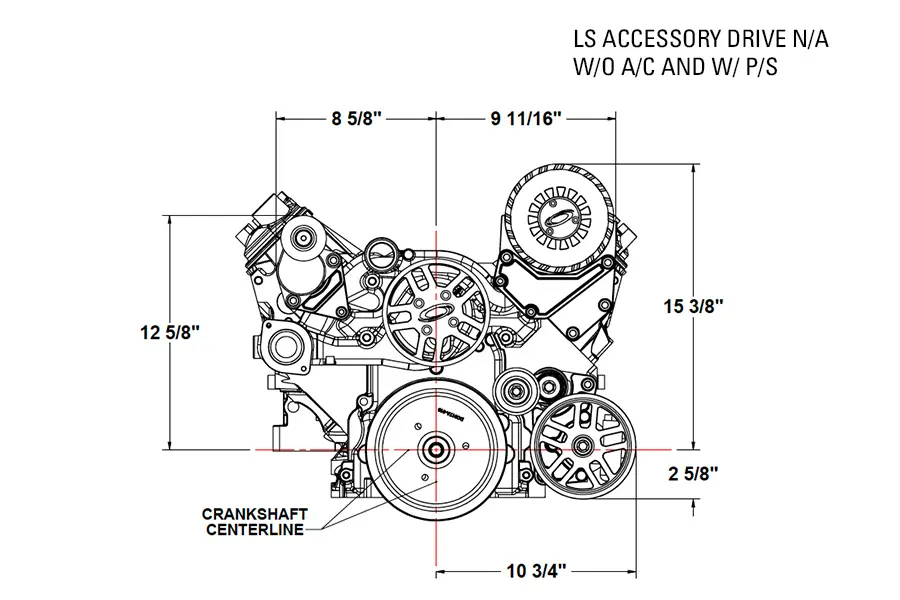

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), WITH POWER STEERING, WITHOUT A/C (CLICK TO ENLARGE)

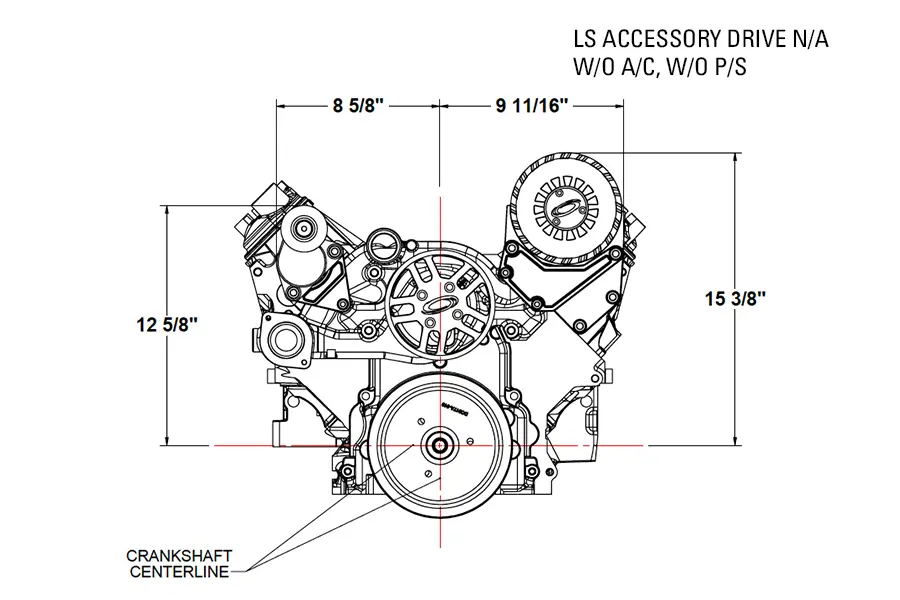

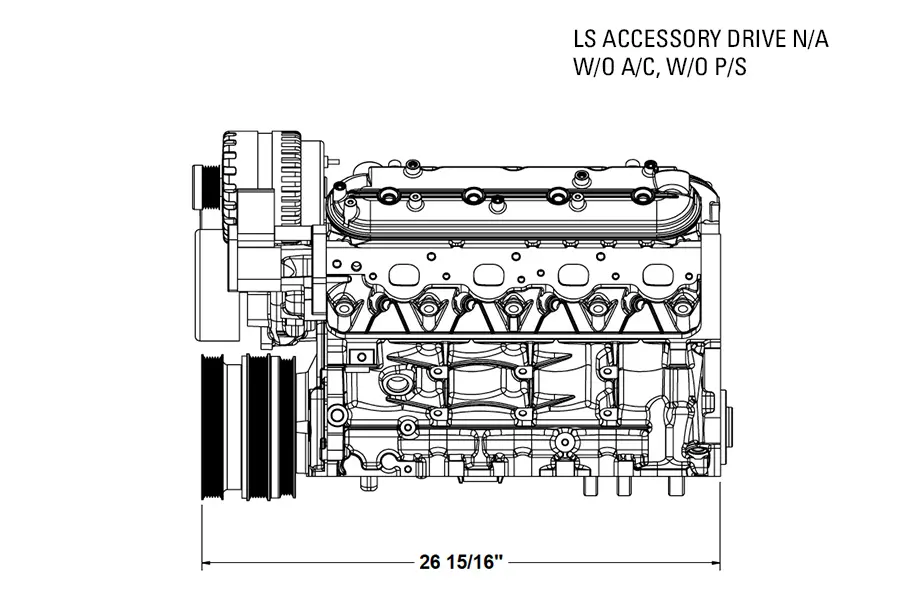

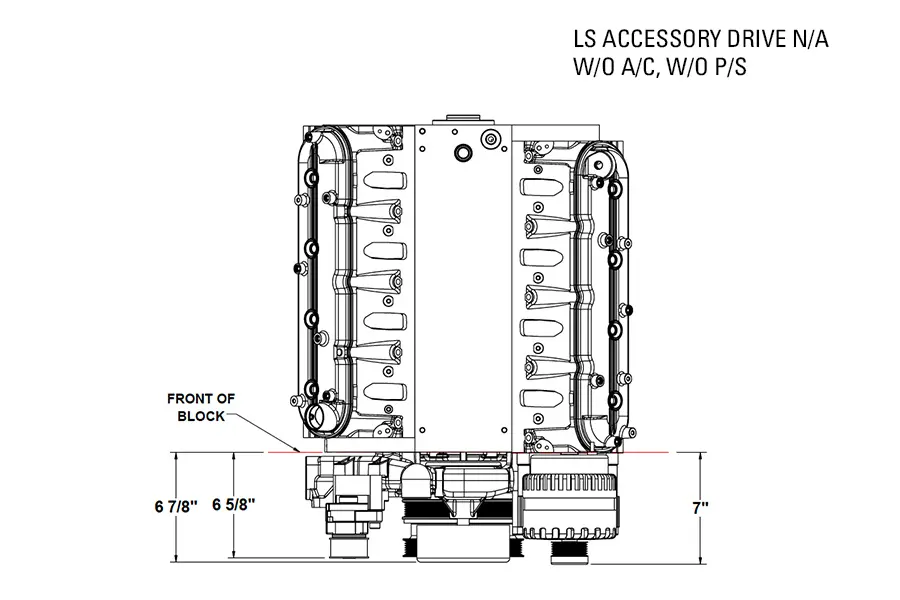

LS ACCESSORY DRIVE NATURALLY ASPIRATED (N/A), WITHOUT A/C, WITHOUT POWER STEERING (CLICK TO ENLARGE)
DOES YOUR APPLICATION REQUIRE DIFFERENT DIMENSIONS?
For other LS engine mounting options, visit the ProCharger GM Accessory Drive Kit webpage.
ACCESSORIES NEEDED
- Crank Balancer: Innovators West P/N 843-8-rib or 844-10-rib, or ATI Performance Products P/N 917345 (8-rib) or 917347X (10-rib)
- A/C Compressor: Sanden SD-7B10 6-rib drive
- Alternator: GM P/N 20881337 (2007-2013 GM Truck or equivalent)
- Power Steering Pump: GM Type 2 Tuff Stuff 6175AL (or equivalent), reservoir P/N 6175ARES (Note: remote reservoir required for supercharged applications)
- Water Pump: supplied with kit
ADDITIONAL NOTES
- Pinning crank pulley is recommended.
- Accessories and crank balancer sold separately.
- Designed for standard deck height, wet sump, aluminum and iron block LS engines. Not available for LS7 or VVT. Not tall deck compatible.
- Minor modifications required for iron block engines with power steering.
