2009 Pontiac G8
2009 Pontiac G8
Supercharger:
F-1A-94
Installed By:
Majestic Motorsports, Inc.

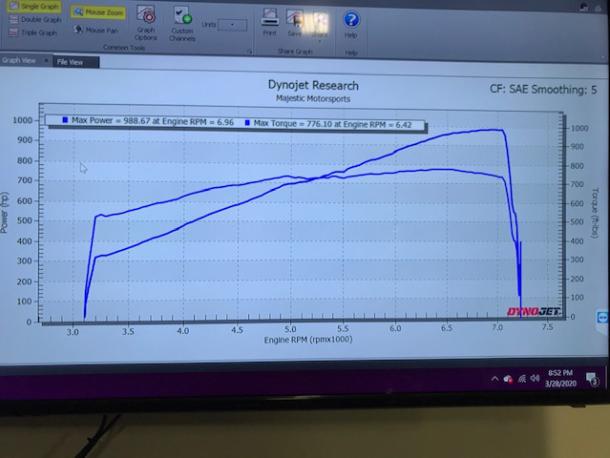

After RWHP:
987
Before RWHP:
355
Boost:
22+
ET/MPH:
9.60 @ 142 of the trailer
Transmission:
6L80E by Tim King Racing
Modifications and Additional Specs:
ENGINE: (self built at Majestic Motorsports Inc.)
- LS3 based 377cu(aluminum block)
- Weisco -3.2cc Forged Piston
- K1 Technologies Forged H-beam rods (w/ ARP 2000 rod bolts)
- K1 Technologies Forged Crankshaft
- ARP Main Stud Kit
- Clevite Bearings Through-out
- Johnson Short Travel Lifters
- Brian Tooley Harnded Pushrods
- Blue Line Performance Custom Cam by Brain Tooley (22x/24x .61x/.59x 115+5)
- Chevy Performance LS9 Head Gaskets
- ARP 2000 Head Studs
- Frankenstein Engine Dynamics Stage 2 Ported stock Heads
- Brain Tooley Platinum .685" Spring Kit ( Installed by Blazing High Perfromance)
- Smith Brothers Brass trunnion kit
- Brian Tooley Equailizer square port intake manifold
- Ported Stock Throttle Body (ported by Blue Line Performance)

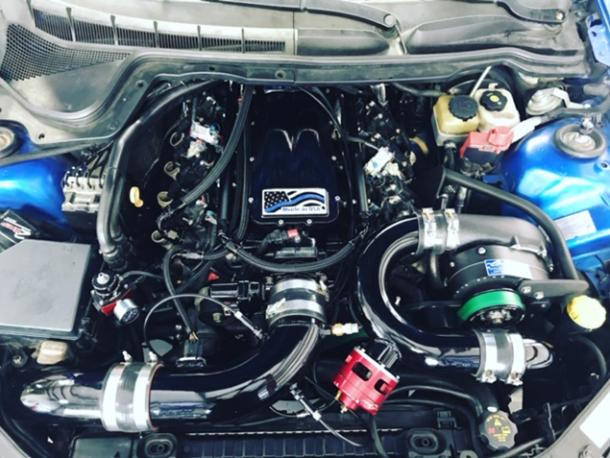

Procharger:
- F1A-94 making 22lbs of boost
- Custom Bracket Brace by Majestic Motorsports
- Custom Pulley Setup by Majestic Motorsports
- Intercooler piping by Majestic Motorsports
- 4" thick Treadstone Intercooler
- LS7 MAF with air straightener
FUEL SYSTEM:
- Fore Innovations Triple Pump Hat (triple 470lph walboros)
- Fore Innovations FC3 Controller
- Feed is -10 AN E85 capable hose
- BTR Fuel Rails routed in series
- Aeromotive Fuel Pressure Regulator
- Return is -6AN E85 hose
EXHAUST:
- stainless works 2" primary Long tube headers
- Custom V-banded by Majestic Motorsports
- True 3" exhaust through a magnaflow duel in duel out muffler
DRIVETRAIN/ SUSPENSION:
- Billet Triple Disc 3800 stall by Circle D Specialties
- Built 6l80e by Tim King Racing
- One Piece Alum Driveshaft by Drive Shaft Shop
- 5th Gen Camaro Rear Diff Housing (built at Majestic Motorsports)
- Detroit True Track Differential
- 3.27 rear gear by Yukon
- All Rear Suspension Bushings by BMR Suspension
- Tubular Trailing Arm By BMR Suspension
- Tubular Adjustable Toe Rod by BMR Suspension
- Lowered Control Arm By BMR Suspension
- Adjustable Sway Bar End Links by BMR
- Drag Rear Sway Bar by BMR
The Car weighs 4370 with me in it.
