LT Classic Serpentine Kit
ALTERNATE MOUNTING OPTIONS

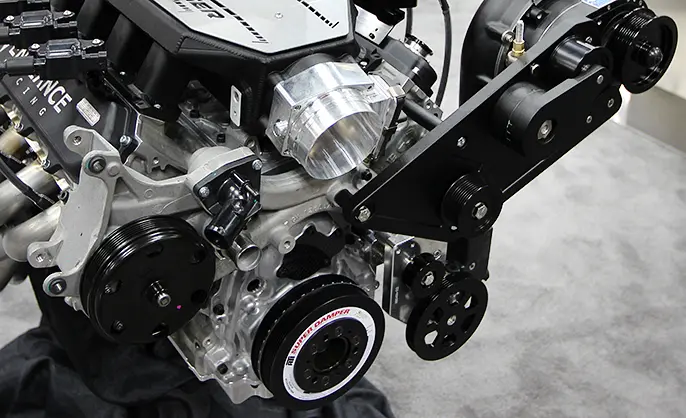

When our popular LT Serpentine Accessory Drive Kit doesn’t fit your build, the LT Classic Serpentine Kit is a perfect choice. Based on our record-setting Camaro and CTS-V bracket system, the LT Classic Serpentine Kit adds the features you want in your vehicle, starting with provisions for a power steering pump to be added or aftermarket balancers for higher horsepower applications. Head units all the way up to an F-1X and F-2 are possible, while being driven off an 8- or 10-rib belt system.
LT swaps are gaining popularity in the world of hot rodding and many look to supercharging for power gains. ProCharger’s LT Classic Serpentine Kit gets you up and running on boost quickly!
Mounting options:
– Conventional driver side mount (8- and 10-rib)
– Reverse driver side mount (8- and 10-rib)
– Driver side truck style mount (6-rib)*
– Passenger side truck style mount (8-rib)
*= Shared drive belt for supercharger and accessories
LS CLASSIC SERPENTINE KIT INCLUDES
• P-1SC-1 supercharger, satin finish
• Supercharger drive (rib count depends on mounting style)
• Supercharger bracket, accessory brackets, and SC belt tensioner
• ProFlow blow-off valve
• Air-to-air intercooler (optional)
• Tubing (for intercooled kits only)
• Part#: 1LT100
UPGRADE OPTIONS
• Black or polished supercharger finish, brackets, carb hat, tensioner
• Helical gear set for noise reduction
• D-1SC-1, F-1D, F-1, F-1A, F-1A-94, F-1c, F-1R, F-1X, or F-2 supercharger
• 10-rib dedicated drive
• Intercooler upgrades that support higher horsepower
• Race blow-off valve
Kits starting at $4,899

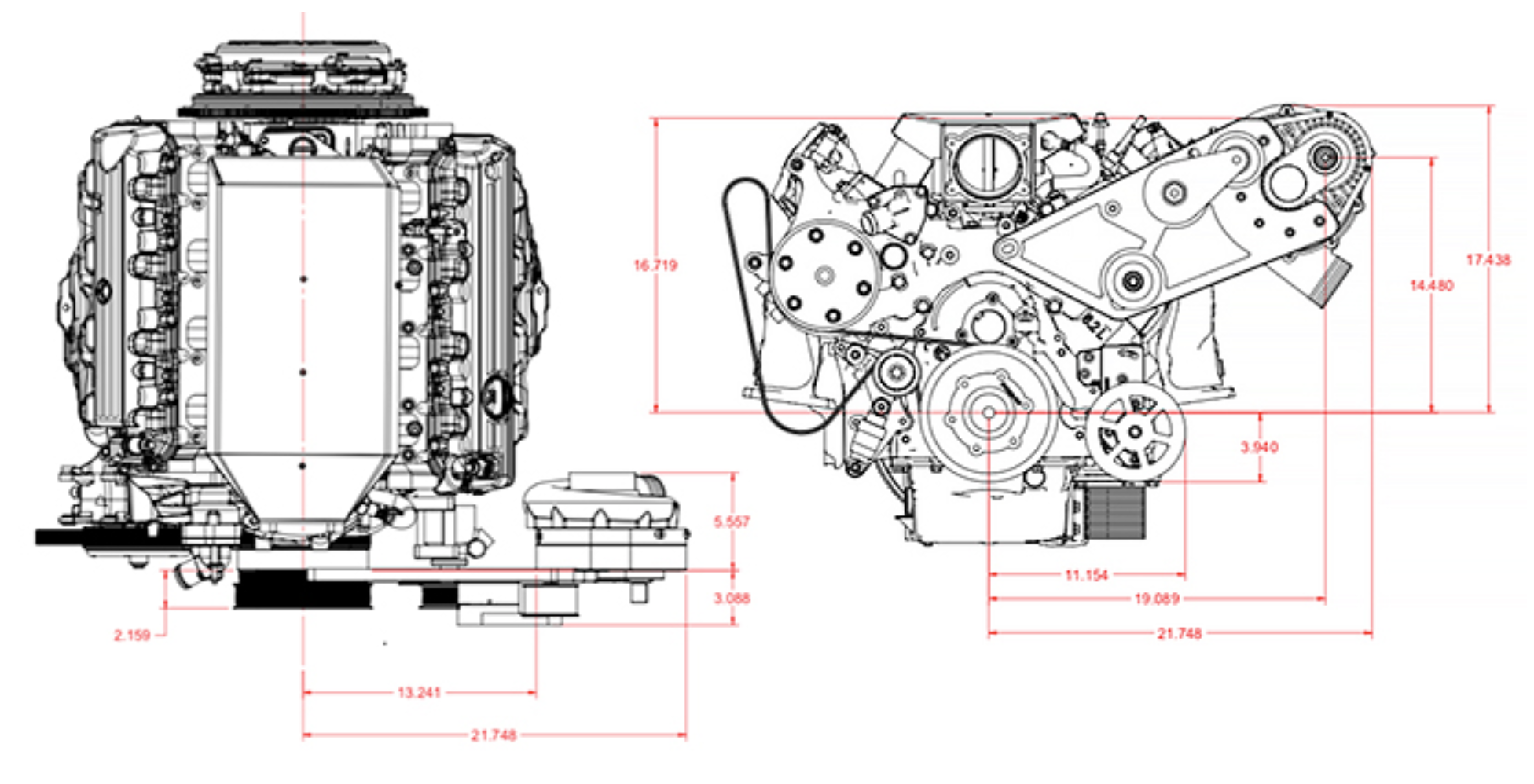

DIMENSIONS - CONVENTIONAL DRIVER'S SIDE MOUNT

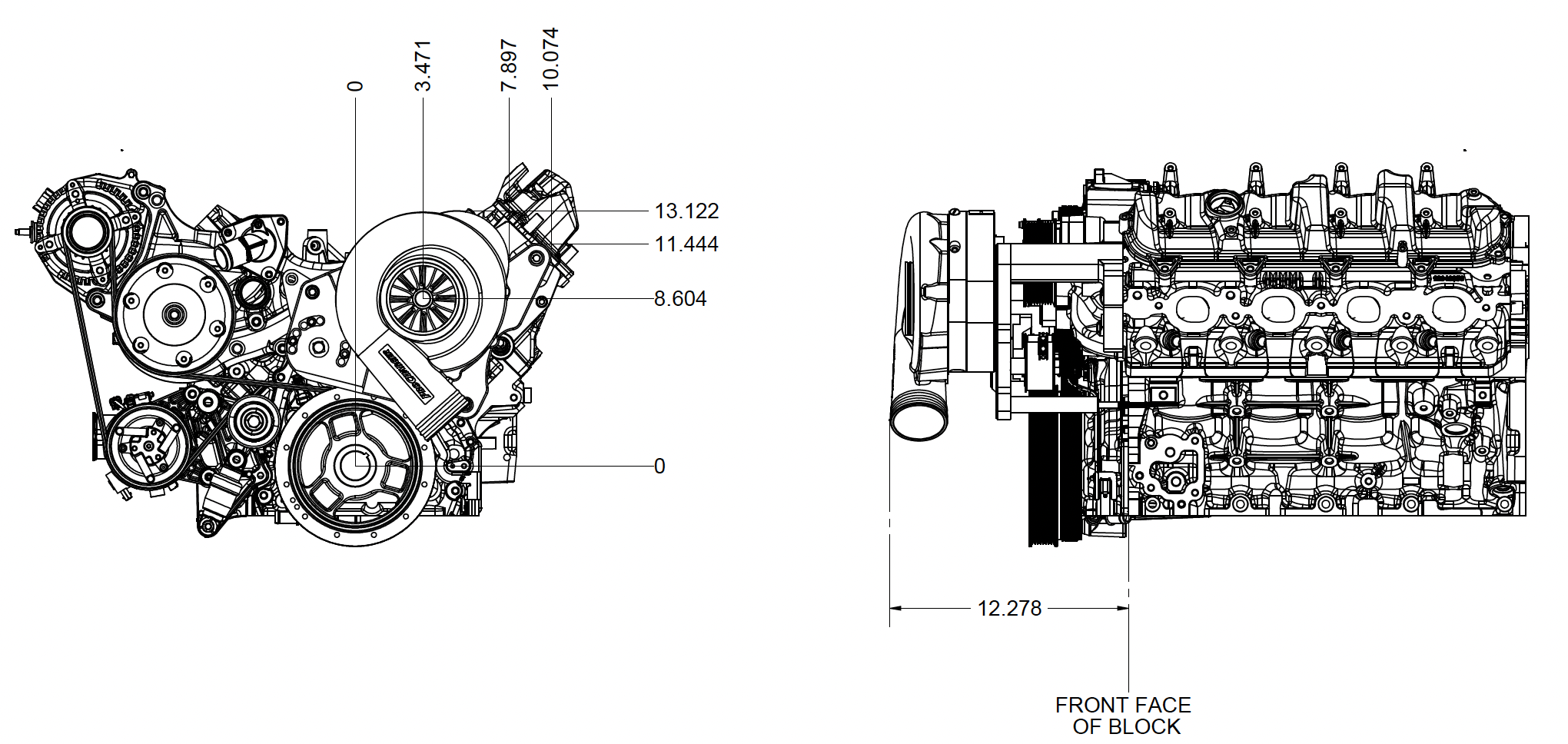

DIMENSIONS - REVERSE DRIVER SIDE MOUNT
DRIVER SIDE TRUCK STYLE MOUNT
Dimensions coming soon. 6-rib shared drive belt for supercharger and accessories.

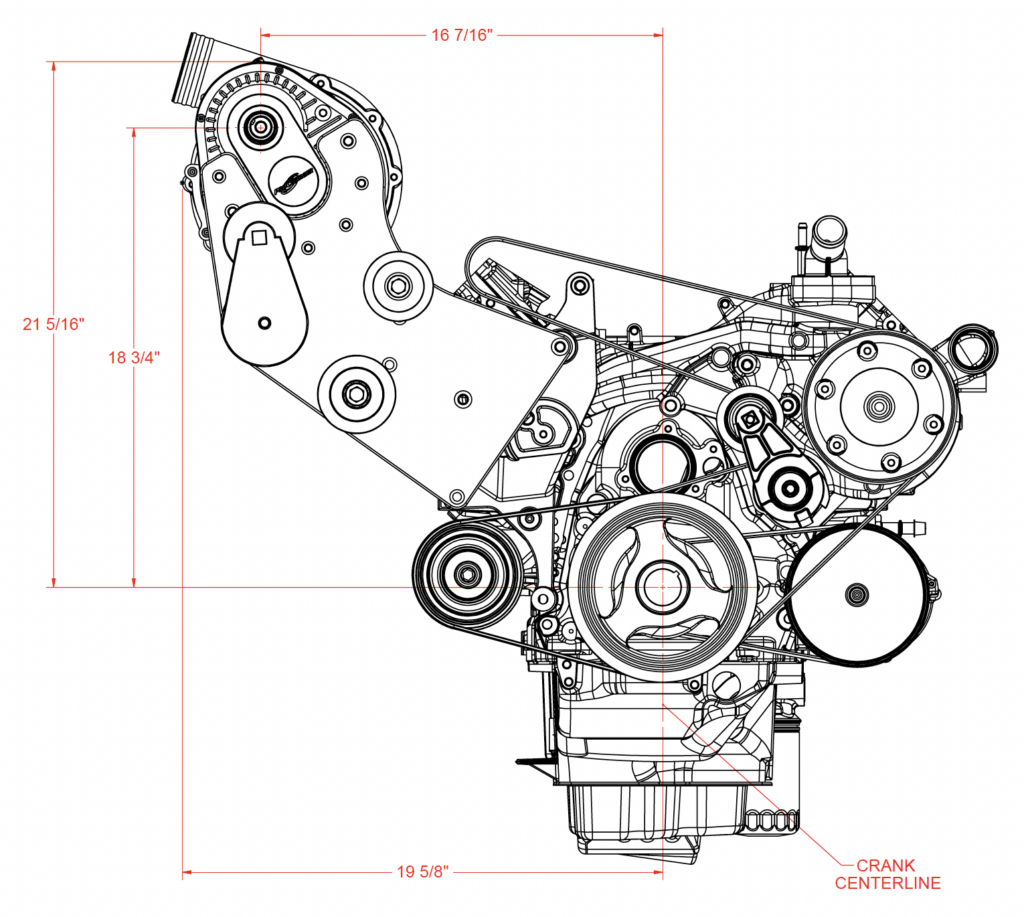

DIMENSIONS - PASSENGER SIDE TRUCK STYLE MOUNT
8-rib dedicated supercharger drive only (no 10-rib upgrade option).
